European impact crusher
EURO Impact crusher is designed with a large inlet opening , hydraulic opening device and automatic adjustment control. Due to its simple structure, low power consumption, large crushing ratio and uniform particle distribution, This kind impact crusher is widely used in many fields. The impact crusher uses the blow bars which installed on high-speed rotor to strike the material repeatedly to realize crushing.
Belonging Category:
European impact crusher
Welcome to call for consultation 86-021-37590851
- Description

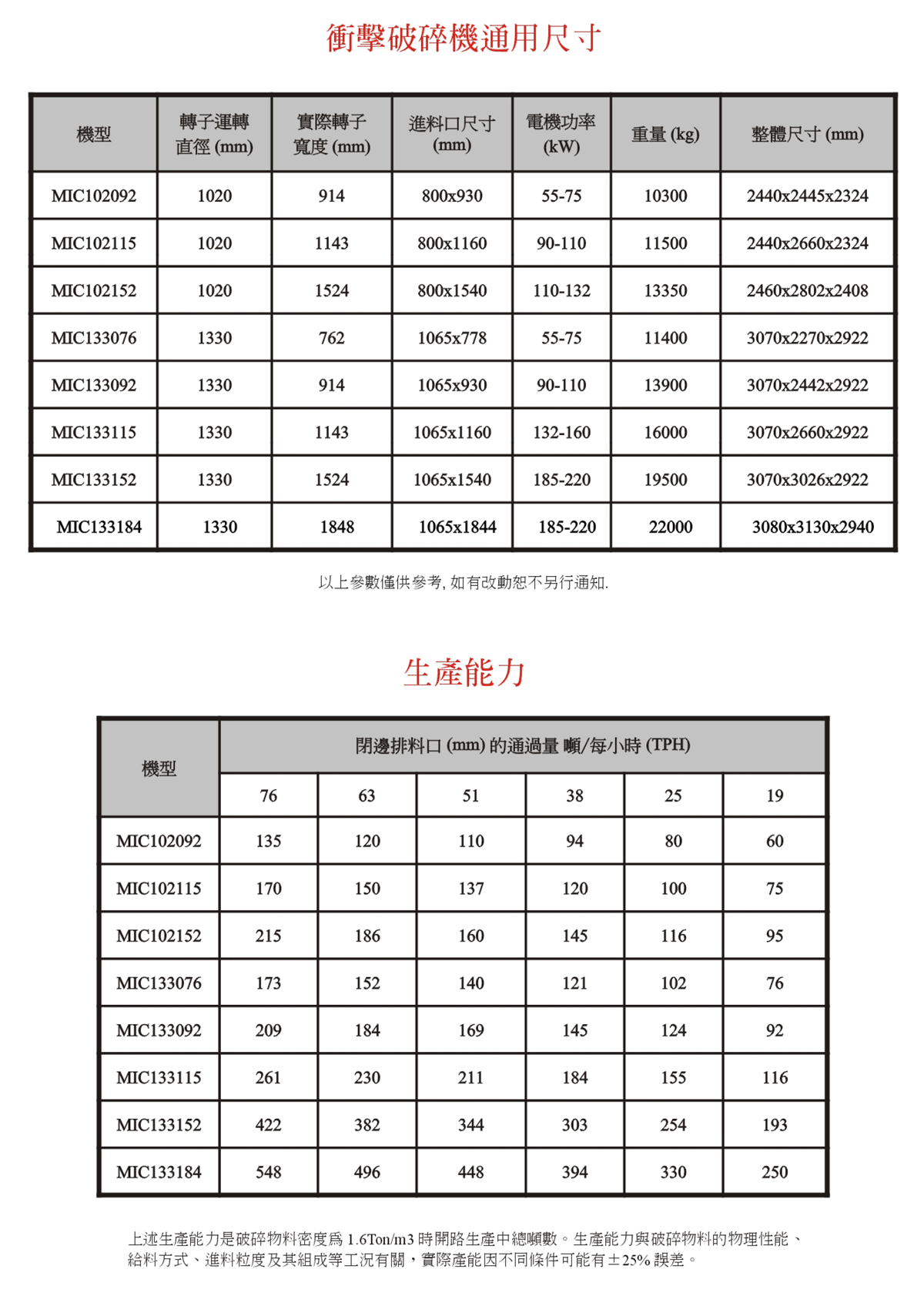

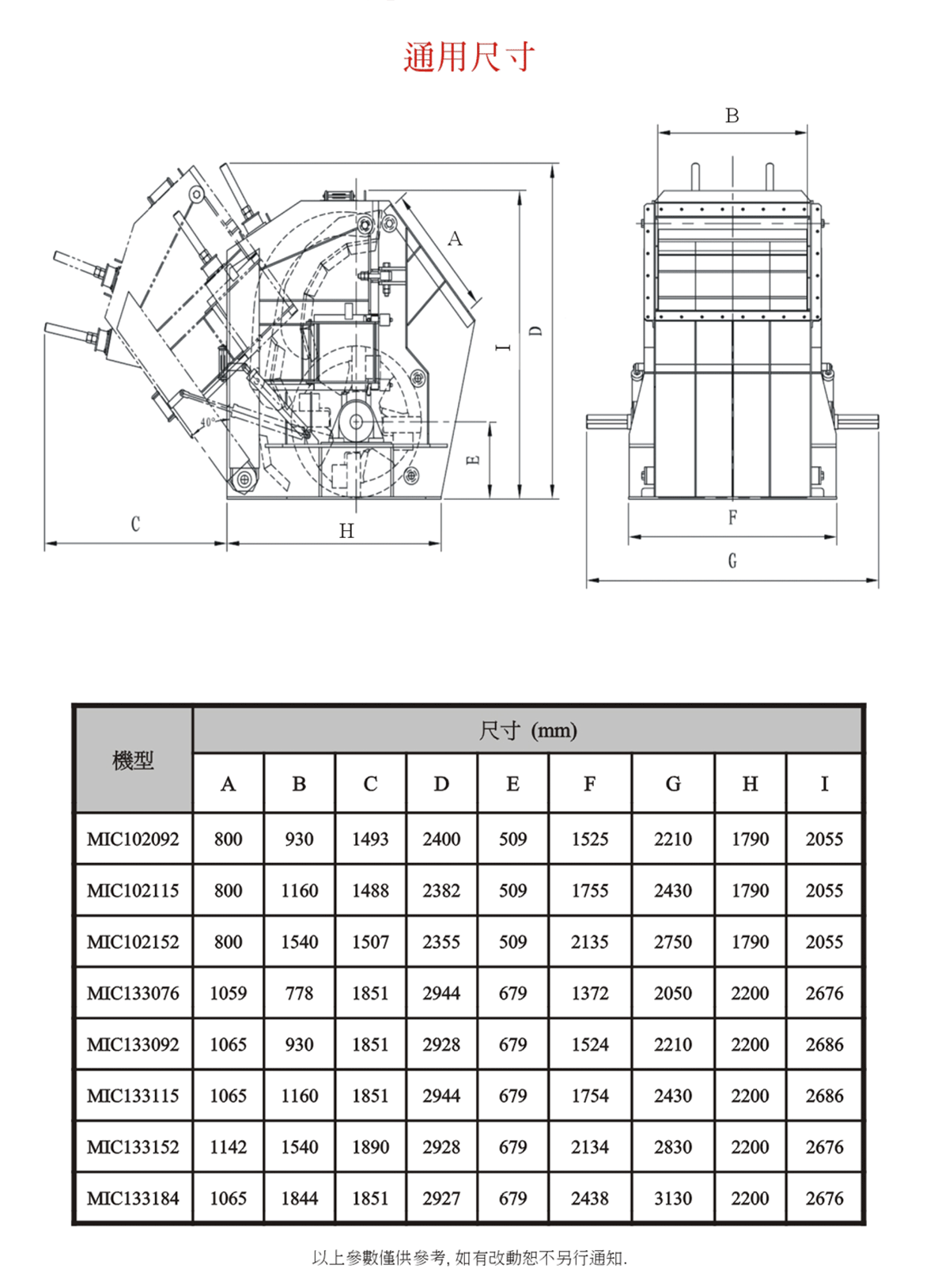

- Technical parameter
-
European impact crusher
The impact crusher is designed with large feed inlet, hydraulic opening device and automatic adjustment control. Due to its simple structure, low power consumption, large crushing ratio and uniform particle distribution, our impact crusher is widely used in many fields.
The impact crusher uses the plate hammer on the high speed rotating rotor to produce multiple high speed impact on the materials sent into the crushing chamber.
MIC horizontal axis impact crusher has been patented in the United States, and its rotor is equipped with an anti-skid device.
Crushing ratio -- crushing ratio up to 20:1
High productivity - Optimized technical parameters to maximize production
Wear - resistant parts - hammer, conflict lining board, side lining using wear - resistant alloy
Hydraulic operation on and off - quickly replace wearing parts
Hydraulic adjustment of discharge port - it saves time and effort to adjust product grain size

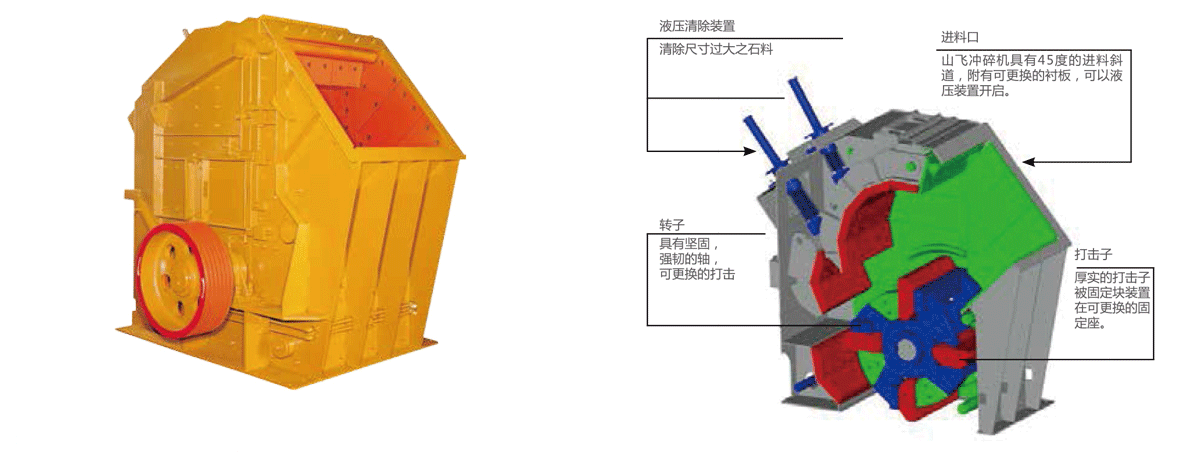

Features:
1. The impact crusher has a 45-degree feed chute, with a replaceable liner, which can be opened by a hydraulic device.
2. The blow bar are installed in the rotor which is replaceable.
3. All the liners are interchangeable.
4. There is Positive rotor locking device inside machine which ensure the safety of the technician when replacing the rotor.
5. The main shaft is strong and durable and the rotor fixing seat is replaceable.
6. It is suitable for waste or recycled materials processing.
7. The crushed material is good cubic shape and less needle shape and less flakes.
8. Large crushing ratio, the crushing ratio up to 20:1
9. High production efficiency, optimized technical parameters maximize production
10. Wear-resistant blow bar and impact plate and linear plate are made of wear-resistant alloy, with long using lifetime.
11. Hydraulic to op[en the machine cover to make wearing parts quick replacemen.
12. Hydraulic adjust discharge opening to adjust the final products size and save more time and labor cost.
-
